def reverse(x):
    result = 0
    for i in xrange(8):
        if (x >> i) & 1: result |= 1 << (8 - 1 - i)
    return result

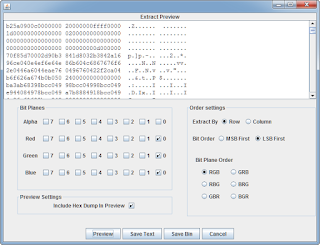

data = open('stegsolver.out.dat', 'rb').read()
output = ''

for i in data:
    output += chr(reverse(ord(i)))

print output[0:4     ]
open('correct.exe=', 'wb').write(output)

Challenge #9

Now, we get to the harder challenges. This is where I can
show my true ghetto analysis attitude! And where I start
taking studious notes on everything. I have a week left to
get three more challenges done, so the pressure is
on.

And let’s start off with a backhanded compliment of a
program.

Followed by a look at some instructions and then a big sea
of data.

LOLWUT?

I really dislike the IDA debugger (I’m heavily reliant on
Right Click>Follow in Dump) but it’s best for this
challenge. There’s a lot of code to get through and most of
it useless and, for me, IDA does a better job of
recognizing and assembling this code as you step
along.

The first goal is to focus on the actual input portion in
all of that. So, let’s run it in the debugger, then step
through until we get to the input. Set a breakpoint after
that part, type in some unique junk
(‘ABCD_1234_ABCD_1234@flare-on.com’). Then start a debugger
trace with Instruction Tracing. Then, hit F9, and
relax.

This trace output contained 9,600 instructions. Not bad.
Not easily readable either. Let’s channel our inner Unix
admin. I’m at an advantage: I work from home, I’ve already
started growing out my neck beard.

Wait, what? Where am I going with all this … We’re
looking for loops. We’re looking for the same instructions
to be called with varying registers. We’ve seeded the
registers with somewhat unique values. I’m hoping to find a
mov, xor, cmp, or something usable.

A first pass shows that there are no EAX = 00000031 or
00000065. After digging a little deeper, I see it:

I know that at 0x401A9C each respective byte is loaded into
AL. Let’s then poke around for any single-byte XOR’s with
‘grep’  (Are you cringing at this process yet? I know
you are. And I like that.)

Boom! So at 0x012FDF8 are calls regarding single-byte XOR.
This may not even be relevant, but I like to just log this
stuff as I see it. While we’re at it, let’s hunt for any
other math routines:

We know from our input breakpoint that the program picks up
around 0x40173B. I can see that also as the top of a loop.
Based on that, I can search through the trace to find the
bottom of the loop that causes a jz/jnz back to there. I
see that at 0x401BC8. So now we have a fairly confined
boundary to focus on.

Since we see the routine looping, we can sort-of conclude
that it’s not exiting if a byte is wrong. Based on this,
can we determine the overall email length? Let’s try.

Run a new trace with a unique and long “email”. For this
test, I’ll use:

ABCDEFGHIJLKMNOPQRSTUVWXYZ1234567890abcdefghijklmnopqrstuvwxyz

Because we know each character is unique, and we know the
location, we can run a simple:

At 41 bytes it stops checking bytes, so we have a pretty
high fidelity guess to the email length. The only reason I
do a sort | uniq here is that the results are repeated
twice, for some reason. So they show up as 82 bytes (two
checks of 41 bytes each).

At this point, I’ll follow the code from AL all the way
down to see what happens to it.

.text:00401A9C mov     al, [eax+ecx]

Stack[000007B0]:0012FDF4 mov     ah,
[esp+ebx+0B4h]    ; XOR key as AH

.text:00401B14 rol     al, cl

     ; ROL key as CL

.text:00401B16 mov     ebx, [esp+ebx+2Ch]
           ; Load cmpxchg
value into EBX

Stack[000007B0]:0012FDF8 cmpxchg bl, dl

That last exchange, cmpxchg, was elusive to discover. When
debugging, IDA would never display this opcode properly,
nor the hex bytes around it, shown here at address
0x12FDF8:

I knew something was happening here, but could not
determine exactly what. So, I switched to Immunity and saw
the operation jump out:

At the very end, the respective input byte, performed with
these operations, would be compared to a static table using
cmpxchg. Knowing this, I think of all the possible ways to
collect these values and map them out. Then I thought of
the worst way possible… spreadsheets!

Yes. I loaded an Excel spreadsheet and, for each byte,
marked the XOR byte, ROL byte, and ultimate CMPX value. Is
that a look of disgust I see? Oh yeaaahh

Once the routine was discovered, that was about 5 minutes
to collect, reverse, and decode the email of:

Is_th1s_3v3n_mai_finul_foarm@flare-on.com

Challenge #10

Challenge 10 had a lot of different things going on but, at
the end, it came down to a few small gimmick hurdles. Let’s
get to them one at a time. You’re given an executable,
loader. When executed it does quite a few things as I’ll
show in my awesome tool that’s on Github and you should
contribute to and I totally gave a demo on it at BlackHat 2015 Arsenal, Noriben.

-=] Sandbox Analysis Report generated by Noriben v1.6.2
-=] Developed by Brian Baskin: brian @@ thebaskins.com  @bbaskin
-=] The latest release can be found at https://github.com/Rurik/Noriben

-=] Execution time: 28.18 seconds
-=] Processing time: 0.20 seconds
-=] Analysis time: 4.90 seconds

Processes Created:
==================
[CreateProcess] Explorer.EXE:1824 > "C:FLAREloader.exe "  [Child PID: 2700]
[CreateProcess] loader.exe:2700 > "%WinDir%system32ioctl.exe 22E0DC"  [Child PID: 3412]

File Activity:
==================
[CreateFile] loader.exe:2700 > %UserProfile%Local SettingsTempaut1.tmp  [File no longer exists]
[CreateFile] loader.exe:2700 > %WinDir%system32challenge.sys  [MD5: 399a3eeb0a8a2748ec760f8f666a87d0]  [VT: 0/57]
[DeleteFile] loader.exe:2700 > %UserProfile%Local SettingsTempaut1.tmp
[CreateFile] loader.exe:2700 > %UserProfile%Local SettingsTempaut2.tmp  [File no longer exists]
[CreateFile] loader.exe:2700 > %WinDir%system32ioctl.exe  [MD5: 205af3831459df9b7fb8d7f66e60884e]  [VT: 0/57]
[DeleteFile] loader.exe:2700 > %UserProfile%Local SettingsTempaut2.tmp

Registry Activity:
==================
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeType  =  1
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeStart  =  3
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeErrorControl  =  1
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeImagePath  =  ??C:WINDOWSsystem32challenge.sys
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeDisplayName  =  challenge
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeSecuritySecurity  =  01 00 14 80 90 00 00 00 9C 00 00 00 14 00 00 00
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeEnum  =  RootLEGACY_CHALLENGE000
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeEnumCount  =  1
[RegSetValue] services.exe:720 > HKLMSystemCurrentControlSetServiceschallengeEnumNextInstance  =  1
[RegSetValue] System:4 > HKLMSystemCurrentControlSetControlClass{DDEEAAFF-1337-BEEF-8877-665511223344}Class  =  challenge
[RegSetValue] System:4 > HKLMSystemCurrentControlSetControlClass{DDEEAAFF-1337-BEEF-8877-665511223344}NoDisplayClass  =  1
[RegSetValue] System:4 > HKLMSystemCurrentControlSetControlClass{DDEEAAFF-1337-BEEF-8877-665511223344}NoUseClass  =  1
[RegSetValue] System:4 > HKLMSystemCurrentControlSetControlClass{DDEEAAFF-1337-BEEF-8877-665511223344}PropertiesSecurity  =  01 00 0C 90 00 00 00 00 00 00 00 00 00 00 00 00

At a high level, loader.exe is run as PID 2700. It drops
aut1.tmp and aut2.tmp to %Temp%. After each, an immediate
file is created in C:WindowsSystem32. Respectively,
challenge.sys and ioctl.exe.  Then, a service is
created (shown as services.exe:720 as the source) to create
a service named “challenge” to point to that challenge.sys.
 We also then see a new Class created for that
service. Finally, loader runs “ioctl.exe” with the argument
of 22E0DC.

And those [VT 0/57] ratings? Come on people, you upload
your challenges to VirusTotal? That should be an automatic
disqualification.

Upon loading loader into IDA, we quickly see that it’s the
wrong way to go about this:

It’s an AutoIt executable, for which there will be an
encoded, embedded script. These are automatically extracted
with aut2exe.exe, which will produce a script that begins
with a few hundred lines of code for service management.
Discard these; they’re generic and copy pasted from
elsewhere. Focus below that:

If @OSArch <> "X86" Then
    MsgBox(0, "Unsupported architecture", "Must be run on x86 architecture")
    Exit
EndIf
If @OSVersion = "WIN_7" Then
    FileInstall("challenge-7.sys", @SystemDir & "challenge.sys")
ElseIf @OSVersion = "WIN_XP" Then
    FileInstall("challenge-xp.sys", @SystemDir & "challenge.sys")
Else
    MsgBox(0, "Unsupported OS", "Must be run on Windows XP or Windows 7")
    Exit
EndIf
FileInstall("ioctl.exe", @SystemDir & "ioctl.exe")
$nret = dothis("0x96c581bc009905e76931875a583f97a738b764eb67f35c802194bf86123b943d1907619488a31a26cf29ba5f5e57ed5c5a37cb5d67dc2020a7e6d55cadefba32aba3ed77f0e18e41a571e74a8a7614a895d7c8827c46028761994543bf449138c65a6e7b5039792c85be5b4998c9950d2497f73cd88d186a6bffe3634bd250ec59e2", "flarebearstare")
If $nret Then
    If dothis("0x96d587b8139933d17e3598505e729da736bb66aa6cfa5180289fb6845530", "flarebearstare") Then
        dothis("0x9aee96b50da818d16f368556131aecfc69ef21a440f24fcc6bd1f3bd1e76db69574a6c8d81ed53688a7eaa364e53fd0700", "flarebearstare")
    EndIf
EndIf

Func decrypt($data, $key)
    Local $opcode = "0xC81001006A006A005356578B551031C989C84989D7F2AE484829C88945F085C00F84DC000000B90001000088C82C0188840DEFFEFFFFE2F38365F4008365FC00817DFC000100007D478B45FC31D2F775F0920345100FB6008B4DFC0FB68C0DF0FEFFFF01C80345F425FF0000008945F48B75FC8A8435F0FEFFFF8B7DF486843DF0FEFFFF888435F0FEFFFFFF45FCEBB08D9DF0FEFFFF31FF89FA39550C76638B85ECFEFFFF4025FF0000008985ECFEFFFF89D80385ECFEFFFF0FB6000385E8FEFFFF25FF0000008985E8FEFFFF89DE03B5ECFEFFFF8A0689DF03BDE8FEFFFF860788060FB60E0FB60701C181E1FF0000008A840DF0FEFFFF8B750801D6300642EB985F5E5BC9C21000"
    Local $codebuffer = DllStructCreate("byte[" & BinaryLen($opcode) & "]")
    DllStructSetData($codebuffer, 1, $opcode)
    Local $buffer = DllStructCreate("byte[" & BinaryLen($data) & "]")
    DllStructSetData($buffer, 1, $data)
    DllCall("user32.dll", "none", "CallWindowProc", "ptr", DllStructGetPtr($codebuffer), "ptr", DllStructGetPtr($buffer), "int", BinaryLen($data), "str", $key, "int", 0)
    Local $ret = DllStructGetData($buffer, 1)
    $buffer = 0
    $codebuffer = 0
    Return $ret
EndFunc

Func dothis($data, $key)
    $exe = decrypt($data, $key)
    $exe = BinaryToString($exe)
    Return Execute($exe)
EndFunc

This is pretty straight forward. If Win7, drop this, if XP,
drop that, otherwise do nothing. Beyond the dropping we see
calls of hex strings to “dothis()” with a second argument
of “flarebearstare”. dothis() simply passes this along to
decrypt() and executes the result. decrypt() is the odd
ball out, taking a big string of shellcode and throwing it
up into memory.

For now, extract the shellcode, convert to hex, save to
file, and open in IDA (which is like three key presses with
WinHex, just saying).

A 256 count loop to build an array with byte swapping,
followed by a whole other loop that XOR’s based on that
array? My money’s on RC4. Let’s whip up a quick Python
script with the encoded values and check:

from Crypto.Cipher import ARC4 as cipher
strings = ('96D587B8139933D17E3598505E729DA736BB66AA6CFA5180289FB6845530', '9aee96b50da818d16f368556131aecfc69ef21a440f24fcc6bd1f3bd1e76db69574a6c8d81ed53688a7eaa364e53fd0700', '96c581bc009905e76931875a583f97a738b764eb67f35c802194bf86123b943d1907619488a31a26cf29ba5f5e57ed5c5a37cb5d67dc2020a7e6d55cadefba32aba3ed77f0e18e41a571e74a8a7614a895d7c8827c46028761994543bf449138c65a6e7b5039792c85be5b4998c9950d2497f73cd88d186a6bffe3634bd250ec59e2')
for str in strings:
    dec = cipher.new("flarebearstare")
    print(dec.decrypt(str.decode('hex')))

This results in the output of:

_StartService(“”, “challenge”)

ShellExecute(@SystemDir & “ioctl.exe”,
“22E0DC”)

_CreateService(“”, “challenge”, “challenge”, @SystemDir
& “challenge.sys”, “”, “”, $SERVICE_KERNEL_DRIVER,
$SERVICE_DEMAND_START)

Nice!  Fill back into our original script to
get:

If @OSArch <> "X86" Then
    MsgBox(0, "Unsupported architecture", "Must be run on x86 architecture")
    Exit
EndIf
If @OSVersion = "WIN_7" Then
    FileInstall("challenge-7.sys", @SystemDir & "challenge.sys")
ElseIf @OSVersion = "WIN_XP" Then
    FileInstall("challenge-xp.sys", @SystemDir & "challenge.sys")
Else
    MsgBox(0, "Unsupported OS", "Must be run on Windows XP or Windows 7")
    Exit
EndIf
FileInstall("ioctl.exe", @SystemDir & "ioctl.exe")
$nret = Exec(_StartService("", "challenge"))
If $nret Then
    If Exec(ShellExecute(@SystemDir & "ioctl.exe", "22E0DC")) Then
        Exec(_CreateService("", "challenge", "challenge", @SystemDir & "challenge.sys", "", "", $SERVICE_KERNEL_DRIVER, $SERVICE_DEMAND_START))
    EndIf
EndIf

Yup, that was a pretty bit of work for such
non-climatic results. I’m bored. Let’s go look at
ioctl.exe.

Welp, that was equally boring. Take a hex value as arg1,
pass it along to DeviceIoControl as dwIoControlCode, where
the hDevice (v7) is the “FileName” of \.challenge. So,
take an arg and pass it to a memory-existent driver.
Check.

Because I’m not a glutton for punishment on non-Fridays, I
would typically focus on the XP driver for the rest.
However, there’s a glitch with that. The dwIoControlCodes
in the XP are shown as as WORD values while the Windows 7
driver shows as proper DWORDs:

They both have the same functionality so for static
analysis the Win7 driver may be more appropriate to use.
There are a few things you should see with these drivers.

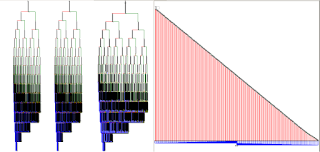

There are 199 referenced functions. Typically, then, I’d
sort functions by size and look at the smallest, then the
largest. The largest are more fun here…

It’s … so beautiful. m0n0sapiens put it most
succinctly:

Tonight we dine in HELL!!! #FlareON
pic.twitter.com/UNvF1XM2Q2

— m0n0sapiens (@m0n0sapiens)
August 11, 2015

Or, in a more disco groove:

It’s raining threads! #Flareon

— int main(void) (@E___H___) August
18, 2015

If you follow the big three functions you’ll see that all
three end with data pushed into the same function, that
feeds into this:

As with any unusual math routine that may be encoding, look
for seed values and Google them. In this case, you’ll see
it referenced as XTEA (eXtended Tiny Encryption Algorithm),
a well known routine. At the end of each of those three
routines is a buffer passed into this decryptor. But, how
are each called?

In this case, there is a single subroutine with a switch
statement of 101 cases, each a DWORD value. If we find the
one used by the dropper we see it pointing to the large
“Triangle” routine. I’ll point it out below along with the
other three large ones (which I’ll name Parse1, Parse2, and
Parse3). I’ve modified this image to remove cruft:

Here we see the code sent from the dropper: 22E0DC,
which points to that massive triangle function. Others have
written up details of this function and how it works. I
skipped it. It had no meaningful calls from it and wasn’t
related to the XTEA decryption routine, so I put it on the
backburner.

I focus on the XTEA and work back. For each Parse routine
this decryptor is called with a buffer of data and a buffer
size. That size is slightly obfuscated just because it is
set at the very beginning in a mess of other values. I’ll
do some magic photoshopping to demonstrate these.

Parse1() calls the decryptor with a 40 (0x28) byte buffer
while the other two call it with an 80 (0x50) byte buffer.
Each buffer is made up of individual global bytes that are
created from subroutines underneath each Parse() routine.
The obvious and professional route is clear from a static
perspective. Follow the xref’s back from each byte, grab
the value, and populate it into the binary.

That’s what others did. That’s not how I roll. Let’s do
this live in a debugger. Our hurdle here is to attach to a
device driver in memory. That would typically involve using
WinDbg at a kernel level, which I do not know how to do
(it’s on my bucket list, trust me, right below base jumping
in South America). I don’t need to run it properly, I just
need to throw it in memory for me to mess with.

So, I use CFF Explorer to modify the PE header, change the
Subsystem to a DLL, and save it. I then debug rundll32.exe
with an argument calling this new “DLL”. It works!

I take the entry point as it appears in the debugger
(0x9C0000) and rebase IDA. Now I can directly see where
changes and calls are made. However, as I quickly learn, I
have many errors in actually running this. The memory
segments that it is loaded in are Executable only. So, in
Immunity, switch to the memory map view and just set them
all as Full Access.  (Didn’t I warn you about how
ghetto I was going to make this? You haven’t seen anything
yet!)

I throw calls to the three Parse() routines and notice that
Parse1() ends with a blank buffer. Passing it into TEA
fills it with garbage. I try to place data into the buffer,
different junk comes back. This must be an INOUT buffer.
But it’s not populated at all. I trace the calls to
populate these bytes back, set a few breakpoints, and see
that they’re never called. There are 40 conditions that are
never met. From a debugger POV I can now try to change
those conditions, or BP at each and change the Z flag. Or I
can make ghetto calls (my personal favorite).

While in ntoskrnl space, just because I was arbitrarily
sitting there, I pull the xref from each subroutine in IDA
and just … call them. One at a time. And watch the buffer
fill. You can ghetto call because there are no arguments to
pass in and no results back. It doesn’t break the stack …
much.

I then call Parse1(), track it to the end, make the call,
and get my email address:

unconditional_conditions@flare-on.com

You cringe at how I did that, but I got it done in just a
few hours, so phooey on you.

Challenge #11

This is the final challenge and it shows. With the
exception of the issues with #6, this sample took me the
longest out of all challenges from this year and last.
There is a lot going on. And, being honest, the other
write-ups will explain this challenge much better than I
and will provide more professional answers. Read at your
own risk.

The executable, CryptoGraph, contains fairly customized
encryption that is seeded by a command line argument to
decrypt an embedded resource into, ultimately, a JPG. For
one, I’m glad they used JPG so that we could avoid the
whole GIF vs JIF debate.

Part One of this challenge is processing the command line
argument directly against embedded data to produce a new
set of data. This data will vary based on the argument
passed and how many times it had to verify the data
contents.

Part Two takes the results of Part One to seed an RC5
decryption of another embedded resource to the disk.

This seems fairly straightforward. We can brute force the
command line options until we get a JPG. This is quite
similar to the final challenge last year. However…

1. The runtime duration of this application is
   approximately 15-20 hours.
2. Even with the correct command line argument, the correct
   number of data loops needs to be determined. Running to the
   end will produce a garbage JPG.

Knowing that, I can see where people can write debugger
scripts to fuzz registers or values at certain points. But,
I have my limitations. I’m going straight in through the
front door. That begins, however, with understanding what’s
going on. Therefore I spend a few days doing nothing but
debugging, following traces, and keeping notes. A LOT of
notes.

Based on such notes, I’m proud to share one of the worst
ways possible of finishing this challenge
successfully.

For one, now that I’ve read other write-ups, I feel foolish
in missing one of the very first checks for a null value at
0x401714. Instead, I focused far past that. The issue here
is that there are three distinct ways to view code in IDA:
hex view, graph view, and decompiler view. Due to the sheer
size of many functions I remained in hex view and
decompiler view. However, as others learned during this
challenge, graph view made it very easy to track unusual
jumps past certain areas that should be reached. There’s a
learning lesson.

When checking for the first argument there is an early loop
where the correct argument will match a value from the
embedded resource and then skip to the rest. If it doesn’t
match, a global integer (which I’ve named Data_Checks) is
incremented, and the process continues.

Past this is the main loop of the program, shown below,
that repeats 32 times. Each time, the speed becomes slower
and slower, based on the v16 value passed into
Core_Decoding_Loops(), which often numbers in the
millions.

  do                                            // Main Loop
  {
    v16 = *(v15 - 44) + v31[398] * (result >> 4);
    v31[398] = v16;
    create_16byte_key(&v32);
    MD5_Chunks(&v32, (v15 - 40), 8);
    MD5_chunk_and_byteswap(&v32, &v36);
    Core_Decoding_Loops(&v34, &v36, v17, (v15 - 40 + 8), v17, v16, 1);
    memcpy_s(&Dst, 16u, &v34, 16u);
    v18 = v30;
    v25 = v30 + v31[5];
    v26 = 2 * v25 + 2;
    v24 = Malloc(4 * v26 | -(v26 >> 30 != 0));
    if ( v24 )
    {
      EQUATION_RC6_Setup(&v24);
      EQUATION_RC6(&v24, &Dst, 16);
    }
    RoundNum_of32 = v18 + 1;
    loop48_round = v27 + 1;
    v29 = v18 + 1;
    do
    {
      Loop1_48(&v24, v15, v15, 48, &RoundNum_of32);
      --loop48_round;
    }
    while ( loop48_round );
    if ( *v15 == v18 )
    {
      create_16byte_key(&v32);
      MD5_Chunks(&v32, v15, 32);
      MD5_chunk_and_byteswap(&v32, &v35);
      v20 = (v15 + 32);
      v21 = 12;
      v22 = &v35;
      while ( *v22 == *v20 )
      {
        v22 += 4;
        ++v20;
        v13 = v21 < 4;
        v21 -= 4;
        if ( v13 )
          goto LABEL_24;
      }
    }
    ++Data_Checks;
LABEL_24:
    if ( v24 )
      j__free(v24);
    v15 += 48;
    result = RoundNum_of32;
    v23 = __ROL4__(v27, 1);
    v30 = RoundNum_of32;
    v27 = v23;
  }
  while ( RoundNum_of32 < 32 );

There are a few references to incrementing Data_Checks and
I tried my hardest to make sure the flow got to that value.
After every loop that number incremented, which I took to
be a good thing. (Spoiler Alert: It
wasn’t).

For example, in this flow graph, I continually tried to follow the cyan (blue) lines leading to Data_Checks.

After following all of the logic at this point, things
started to make sense. The continual iterations were due to
data not being found at certain offsets of the resource
during each round of modifications. There appeared to
be at least one exit condition on the loops that would
prevent continuous processing at certain points. A
proper command line argument should make the data shift
correctly to break out of  such loops and speed up
code execution. But, how do we test that theory?

There are many proper ways of doing it. Instead, here was
mine: Find the slowest computing procedure and, after
complete, patch the program to quit. Then brute force and
see which number makes it end the soonest. For this, I
chose to end immediately after that Core_Decoding_Loops().
Through standard execution, getting from the beginning and
past that loop with an arbitrary argument would take two
minutes. That sounded like a good spread. I went to the
instruction after that call, used Immunity to change the
code to “call _cexit” and patched the resulting bytes into
the executable.

I wrote a quick Python script to brute force the numbers,
timing out any process longer than 60 seconds, and
waited.

import subprocess
seconds = 60

for i in range(0, 255):  # Honestly, I broke this up into 6 simultaneous scripts to run faster
    cmd = 'breakme.exe %d' % i
    print(cmd)
    try:
        stdout = subprocess.check_output(cmd, stderr=subprocess.STDOUT, timeout=seconds)
    except subprocess.TimeoutExpired:
        pass


Now, first, this is not the proper way of doing that.
Second, that patch doesn’t make the program actually exit,
it just crashes it with an unknown software exception
(0xc0000417). So I’d have a ton of numbers do nothing and a
small handful that crashed.

Of the three command line arguments that crashed for being
less than 60 seconds (205, 238, 240) 205 was unique in
reaching that point in literally less than a second. That
seemed odd enough to investigate further.

Using 205 as an argument changed the entire outlook of the
program. Now, early checks that would increase the
Data_Checks global value were skipped. On the very first
pass, at 0x4016D4, a routine to ROR and XOR data was tested
to ensure that the first DWORD was all nulls. Without a
proper command line argument, it would appear similar to
this:

However, once given 205, it produced:

Every additional check would also produce expected results,
skipping large amounts of number crunching. Additionally,
the Data_Checks value was never incremented. This value
counts the number of loops in which the data validation
failed, suggesting that this value should always stay
null.

The second part of this challenge was determining that
after every large round of computation, shown in pseudocode
earlier, the data is re-encoded. As this data is integral
to the second part, it needs to be correct before sending
it back.  From letting the program run with ‘205’ on a
second computer overnight (12 hours to run), I discovered
that it would produce a garbage JPG by default. Therefore,
we need to break out of this loop before it reaches 32
rounds. But, how many rounds do we let it run?

Others found the clean answer to this problem by examining
comparisons on the back end. Me? I had a jug of sangria and
time to kill on a Saturday afternoon. So, I manually brute
forced it while catching up on my Black Butler episodes.
It turns out that it didn’t take that long.

At the end of each round of checks I set a break point and
disabled all prior others. I would run to this CMP EAX, 20
then, at the following JB, just change the C flag to cause
it to break.

Each round produced junk JPGs until I hit round 10, opened
the JPG expecting another round of garbage, and screamed
like a teenage girl at a Justin Bieber concert. There I saw
some sort of SportsBall player with an email!

Cryptol0gists_h8_him@flare-on.com

After sending off the email I tried to figure out who this
was and why he was there. TinEye reports him as Lionel
Messi who is apparently a good SportsBall player. Or, is
he?

There you have it. This was an amazingly fun challenge
(except #6) and I learned much along the way. I am now
prepared to go back and re-do the challenges using the
methods detailed by others. My methods tend to be very
brute-force-ish, very ‘mess with things in memory until
they work’, CTF-speed hacks. But I am slowly forcing myself
to learn the proper methods: WinDbg/GDB scripts, PIN
tracing, more IDAPython, debugger memory fuzzing.

The Prize

Additional Write-Ups

FireEye’s Official Solutions
Topher Timzen’s A Successful Yet Failed Flare ON Challenge – The Write-up
AcidShout’s 2015 FLARE-ON challenges writeup
Reno Robert’s v0ids3curity writeup
Mohamed Shetta’s FLARE On 2015 Walkthrough
z3r0zh0u’s XLOYE Write Ups
Julien Perrot Flare On 2 write-up
A Disturbing Lack of Taste Challenges #7 and #8
0x0A Tang Solving for Hashes in Flare-On #5

Did you find benefit or enjoyment from this post? Was it a waste of your time? Please, leave feedback! I’m open to critiques, criticisms, and attaboys.  If you like it, I’ll keep creating them. Though, next time, a more Forensics related one.
