16 September 2013

Noriben version 1.4 released

It's been a few months since the last official release of Noriben. The interim time has been filled with a few ninja-edits of updated filters, and wondering what to put in next.

Noriben started out as a simple wrapper to Sysinternals procmon to automatically gather all of the runtime details for malware analysis within a VM. It then filters out all the unnecessary system details until what's left is a fairly concise view of what the malware did to the system while running. It is a great alternative to a dedicated sandbox environment. More details on Noriben can be found here.

Over the months I was ecstatic to hear of organizations using Noriben in various roles. Many had modified the script to use it as an automated sandbox to run alongside their commercial products, which was exactly one of my goals for the script. However, the current requirement of manual interaction was an issue and I saw many ugly hacks of how people bypassed it. The new version should take care of that issue.
This was originally a release for version 1.3, which I pushed up on Friday. However, I received quite a bit of feedback for other new features and so quickly I pushed up version 1.4.

In the new version 1.4, I've introduced a few new features:

  • A non-interactive mode that runs for a specified number of seconds on malware that is specified from the command line
  • The ability to generalize strings, using Windows environment variables
  • The ability to specify an output directory
Non-Interactive Mode
The non-interactive mode was needed for a long time, and I apologize it took some time to implement it, as it was a very easy addition. It can be set in one of two ways:
The beginning of the source has a new line:

timeout_seconds = 0

By setting this to a value other than zero, Noriben will automatically wait that number of seconds to monitor the file system. This can be hardcoded for automated implementations, such as in a sandbox environment.

This value can also be overridden with a command line option of --timeout (-t). When using this argument, Noriben will enable the timeout mode and use the specified number of seconds. This is useful if you have a particularly long runtime sample. Even if Noriben.py was modified to have a 120-second timeout, you can override this on the command line with a much greater value (3600 seconds, for example).

Noriben now also lets you note the malware from the command line, making it completely non-interactive:

Noriben.py --cmd "C:\malware\bad.exe www.badhost.com 80" --timeout 300

This command line will launch bad.exe, with a given command line, for a period of 5 minutes. At such time, Noriben will stop monitoring the malware, but it will continue to run.

Output Directory
An alternate output directory can be specified on the command line with --output. If this folder does not exist, it will be created. If Noriben is unable to create the directory, such as when it doesn't have access (e.g. C:\Windows\System32\), then it will give an error and quit.

String Generalization
One requested feature was to replace the file system paths with the Windows environment variables, to make them generic. Many people copy and paste their Noriben results which may show system-specific values, such as "C:\Documents and Settings\Bob\malware.exe". This string will be generalized to "%UserProfile%\malware.exe".

This feature is turned off by default, but can be enabled by changing a setting in the file:

generalize_paths = False

Or by setting --generalize on the command line.

All in all, these features could be summed up with:

Noriben.py --output C:\Logs\Malware --timeout 300 --generalize --cmd "C:\Malware\evil.exe"

Download Noriben

03 September 2013

Malware Analysis: The State of Java Reversing Tools

In the world of incident response and malware analysis, Java has always been a known constant. While many malware analysts are monitoring more complex malware applications in various languages, Java is still the language of love for drive-by attacks on common end-users. It is usually with certainty that any home user infection with malware such as Zeus, Citadel, Carberp, or ZeroAccess originated through a Java vulnerability and exploit. In typical crimeware (banking/financial theft malware) incidents, one group specializes on the backend malware (e.g. Zeus) while outsourcing the infection and entrenchment to a second group that creates exploit software like BlackHole, Neosploit, and Fiesta.

In many incident responses, I've seen analysts gloss over the Java infection vector as just an end-note. Once they see the final-stage malware on the system they write off the Java component as just a downloader without any real analysis. This creates issues for the times when the Java exploit only partially succeeds resulting in malicious Java JAR files on a system but no Trojan or malware.

Why did it fail? Was the system properly patched to prevent a full infection? Was there a permission setting that stopped the downloader in its tracks? These are the questions that typically force an analyst to begin analyzing Java malware.

I've discussed Java quite a bit on this blog in the past. My Java IDX cache file parser was made for the purpose of identifying files downloaded via Java, be them Windows executables or additional Java JAR files. In that same post I analyzed Java from a Fiesta exploit kit that installed a ZeroAccess trojan onto an analyzed system.

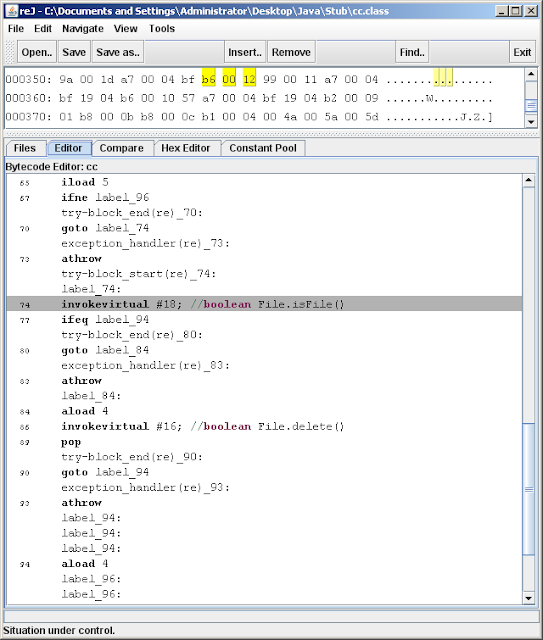

Though Java is not my forte, I've had to face it enough to find that there are many weaknesses and gaps in the tools used for analysis. What I found is that most analysts have been using the same, outdated tools in every case. If the tool fails, they just move on and don't finish their analysis. All the while, new applications are being released that are worthy of note. I felt it worthy to do an annual check-up of the state of analysis tools to display what is available and what weaknesses each holds. There have been similar efforts by others in the past, with the most recent I've found being one in 2010 on CoffeeBreaks, by Jerome.
